KPS DCM7000BT
NEW KPS product – Bluetooth HVAC AC Clamp Meter

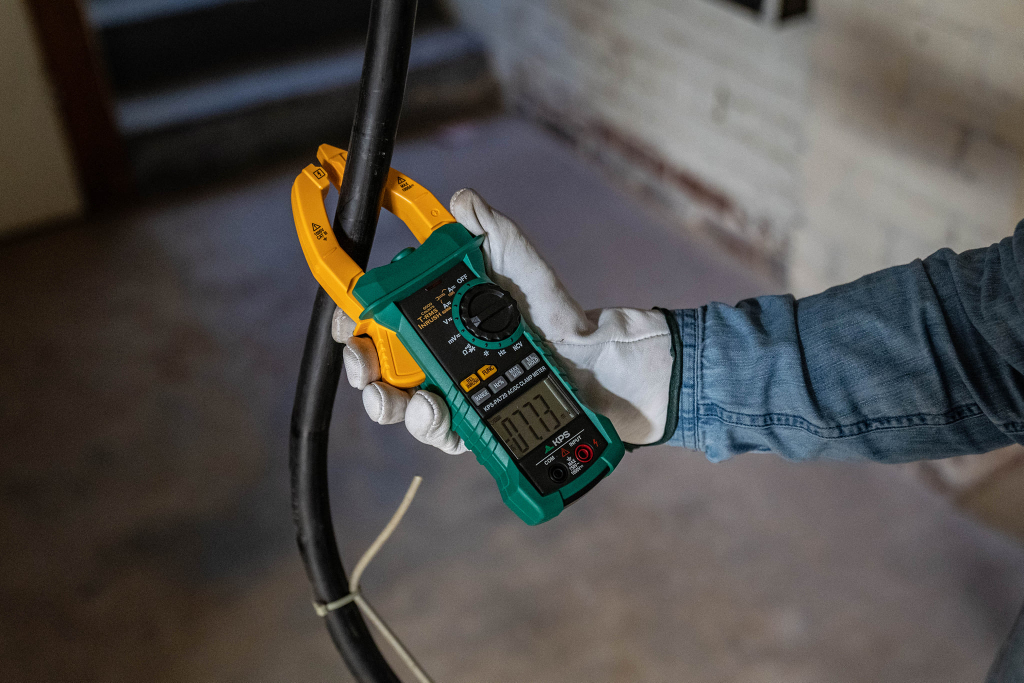

When the professional wants to perform current measurements quickly and easily, the ideal instrument is the clamp meter. This instrument allows, without the need to disconnect the circuit to be measured, to carry out the appropriate measurements with high precision. To measure current, the cable is clamped with the clamp jaw.
KPS has developed a range of clamp meters for special applications, which cover the requirements for the professionals working on industrial, HVAC and solar sectors.
Jaw Size: ⌀ 37mm / 1.5″
Voltage: DC 1000V / AC 1000V
Current: DC 600A / AC 600A
KPS DCM7000BT Key Features:
- 6,000 count with large white LED backlight display
- DC 600mV measurement for sensors or other application
- DC uA for flame rod testing
- Min/Max Hold
- Data Logging/Manual Save up to 4,000 records
- Inrush Current measurement (100ms)
- Special designed LoZ(Low Impedance) feature to prevent false reading caused by ghost voltages
|
Function |
Range |
OL Reading |
Resolution |
Accuracy |
|
DC mV |
600.0mV |
660.0mV |
0.1mv |
±(0.7% + 5D) |
|
DC Voltage |
600.0V |
660.0V |
0.1V |
±(0.7% + 2D) |
|
1100V |
1100V |
1V |
||
|
AC Voltage |
600.0V |
660.0V |
0.1V |
±(1.0% + 5D) |
|
1000V |
1000V |
1V |
||
|
LoZ AC/DC Voltage |
600.0V |
660.0V |
0.1V |
±(2.0% + 5D) |
|
1000V |
1000V |
1V |
||
|
AC/DC μA |
400.0μA |
440.0μA |
0.1μA |
±(1.0% + 3D) |
|
4000μA |
4400μA |
1μA |
||
|
AC Current |
60.00A |
66.00A |
0.01A |
±(2.0% + 5D) |
|
600.0A |
660.0A |
0.1A |
||
|
Frequency |
100.00Hz |
100.00Hz |
0.01Hz |
±(0.3% + 3D) |
|
1000.0Hz |
1000.0Hz |
0.1Hz |
||
|
10.000kHz |
10.000kHz |
0.001kHz |
||
|
Resistance |
600.0Ω |
660.0Ω |
0.1Ω |
±(0.9% + 5D) |
|
6.000kΩ |
6.600kΩ |
0.001kΩ |
±(0.9% + 2D) |
|
|
60.00kΩ |
66.00kΩ |
0.001kΩ |
||
|
600.0kΩ |
660.0kΩ |
0.1kΩ |
||
|
Diode |
1.500V |
1.550V |
0.001V |
±(0.9% + 2D) |
|
Capacitance |
100.0μF |
110.0μF |
0.1μF |
±(1.9% + 2D) |
|
1000μF |
1100μF |
1μF |
||
|
Temperature |
-40.0°C~400.0°C |
440.0°C |
0.1°C |
±(1% + 20D) |
|
-40.0°F~752.0°F |
824.0°F |
0.1°F |
±(1% + 36D) |
